Milk and Dairy Drinks
Use a UHT milk sterilizer for white milk, flavored milk, cream, and yogurt drinks where stable output and flavor protection matter.
UHT sterilizer for liquid food manufacturers

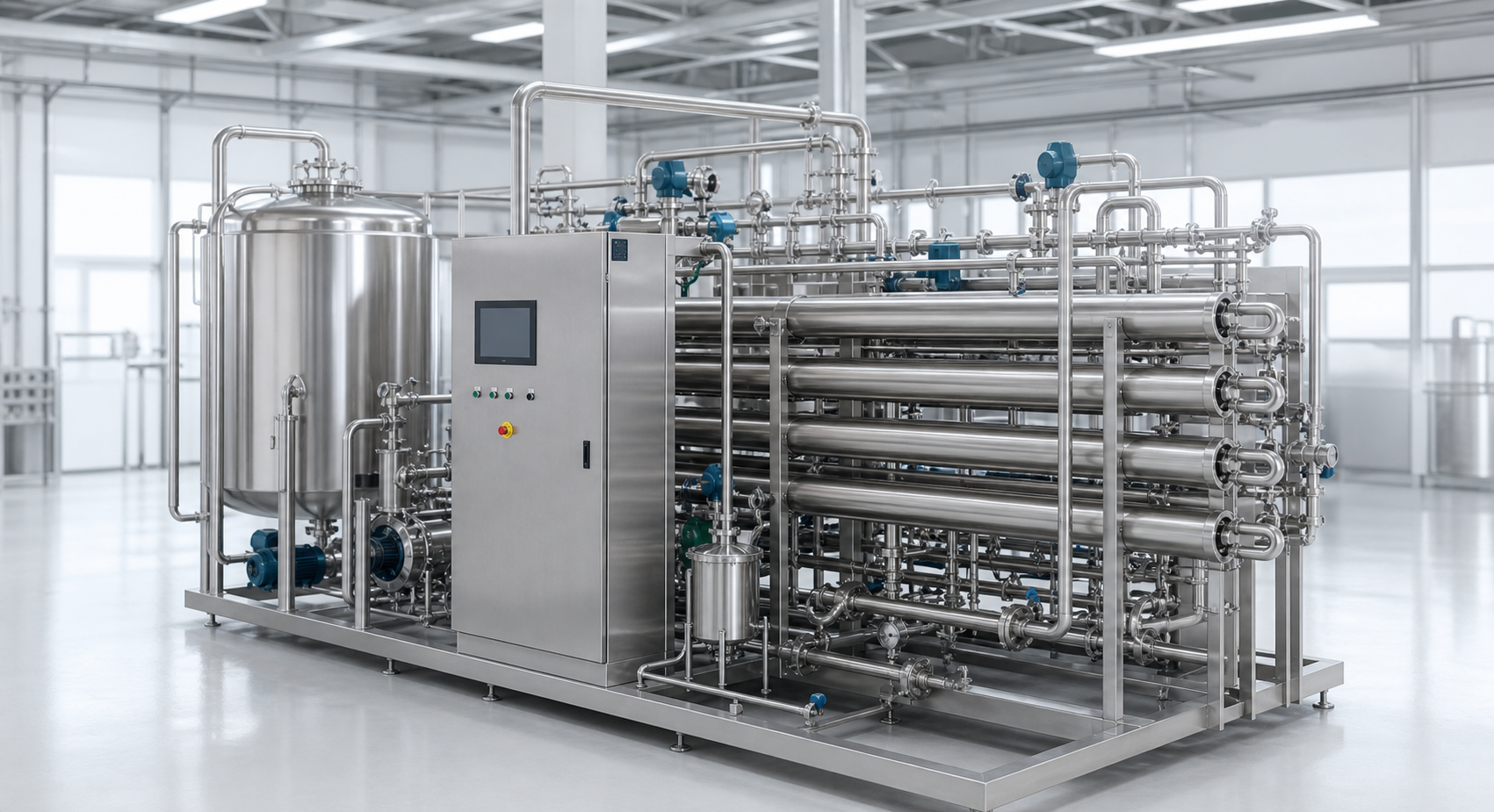

UHT Sterilizer Systems for Liquid Food Processing
Custom plate and tubular UHT sterilizer system solutions for milk, beverages, juice, plant-based drinks, sauces, and other pumpable liquid foods that need high-temperature short-time treatment.
- Hygienic stainless-steel product contact surfaces
- Custom capacity and holding-time configuration
- Plate, tubular, and aseptic process options
Applications
Built for Pumpable Liquid Food Products
The UHT sterilizer for liquid food production is selected around product viscosity, heat sensitivity, flow rate, filling method, and shelf-life target.
Juice, Tea, and Drinks
Beverage UHT sterilization helps reduce microbial load while supporting continuous processing for juice, tea drinks, and functional beverages.
Oat, Soy, and Nut Drinks
Process plant-based liquids with controlled heating and holding time for consistent texture, safety, and downstream aseptic filling.
Sauces and Prepared Foods
Select tubular or scraped-surface configurations for sauces, soups, and higher-viscosity products that need gentle thermal treatment.
Why this system
Practical UHT Sterilizer Advantages
A good UHT line is not just a heater. It should match the product, protect hygiene, stabilize production, and connect cleanly with upstream and downstream equipment.
High-temperature short-time process
Designed for fast heating, precise holding, and rapid cooling to support shelf-life goals.
Food-grade contact parts
Product contact sections can be specified with SUS304 or SUS316L stainless steel.
CIP and SIP support
Cleaning and sterilization-in-place options help simplify hygienic operation between runs.
PLC and HMI-ready control
Control packages can be configured for temperature, flow, pressure, alarms, and recipes.
System options
Plate, Tubular, and Aseptic UHT Configurations
Different liquid foods need different heat exchange designs. The right selection depends on viscosity, fiber content, fouling risk, product particles, and filling requirements.
Plate UHT Sterilizer
A plate UHT sterilizer is often used for low-viscosity products such as milk, tea, juice blends, and other clean-flowing beverages.
- Efficient heat recovery
- Compact equipment footprint
- Suitable for smooth, low-fiber products
Tubular UHT Sterilizer
A tubular UHT sterilizer is preferred for higher-viscosity, fibrous, or more fouling-prone liquids where wider flow channels are useful.
- Strong product adaptability
- Good option for sauces and plant drinks
- Compatible with aseptic downstream layouts
Integrated Process Line
The UHT section can be matched with a balance tank, homogenizer, degasser, aseptic tank, or aseptic filling connection.
- Custom process flow
- Stable continuous operation
- Project-specific automation scope
Process flow
Typical UHT Sterilization Process
A standard line moves product through controlled heating, sterilization, holding, cooling, and aseptic storage or filling.
- 01 Product tank
- 02 Preheating
- 03 Sterilization
- 04 Holding
- 05 Cooling
- 06 Aseptic filling
Technical specifications
Representative UHT Sterilizer Parameters
Final parameters depend on product formula, capacity, required commercial sterility, heating method, and plant layout.
| Capacity range | 500-20,000 L/h, project-specific customization available |
|---|---|
| Sterilization temperature | 115-150 C depending on product and process target |
| Holding time | 2-30 seconds, configured by product and shelf-life requirement |
| Heating method | Indirect steam, hot water, plate heat exchange, or tubular heat exchange |
| Product contact material | SUS304 or SUS316L stainless steel |
| Control system | PLC and HMI-ready automation with temperature, flow, and alarm control |
| Cleaning support | CIP and SIP options according to line configuration |
| Applicable products | Milk, dairy drinks, juice, tea, plant-based drinks, sauces, and liquid foods |
FAQ
Questions Buyers Usually Ask
Share your product type, viscosity, target capacity, filling method, and plant utilities for a more accurate equipment recommendation.
What products can a UHT sterilizer process?
UHT sterilizer systems can process many pumpable liquid foods, including milk, flavored dairy drinks, juice, tea beverages, plant-based drinks, sauces, and prepared liquid foods.
What is the difference between plate and tubular UHT systems?
Plate systems are compact and efficient for low-viscosity liquids. Tubular systems offer wider channels and are often better for higher-viscosity, fibrous, or more fouling-prone products.
Can the system connect to aseptic filling?
Yes. The UHT line can be configured with aseptic cooling, aseptic storage, and filling interfaces when the project requires shelf-stable packaged products.
Can capacity and process parameters be customized?
Yes. Capacity, sterilization temperature, holding time, heat exchange type, cleaning scope, and automation level should be matched to the product and production plan.
What information is needed for a quotation?
Useful details include product name, target capacity, viscosity or solids content, inlet and outlet temperature, packaging method, available utilities, and plant layout.
Request a quote
Tell Us About Your UHT Sterilizer Project
Send your product type and desired capacity. We will help compare plate, tubular, and integrated UHT sterilizer options for your liquid food process.
